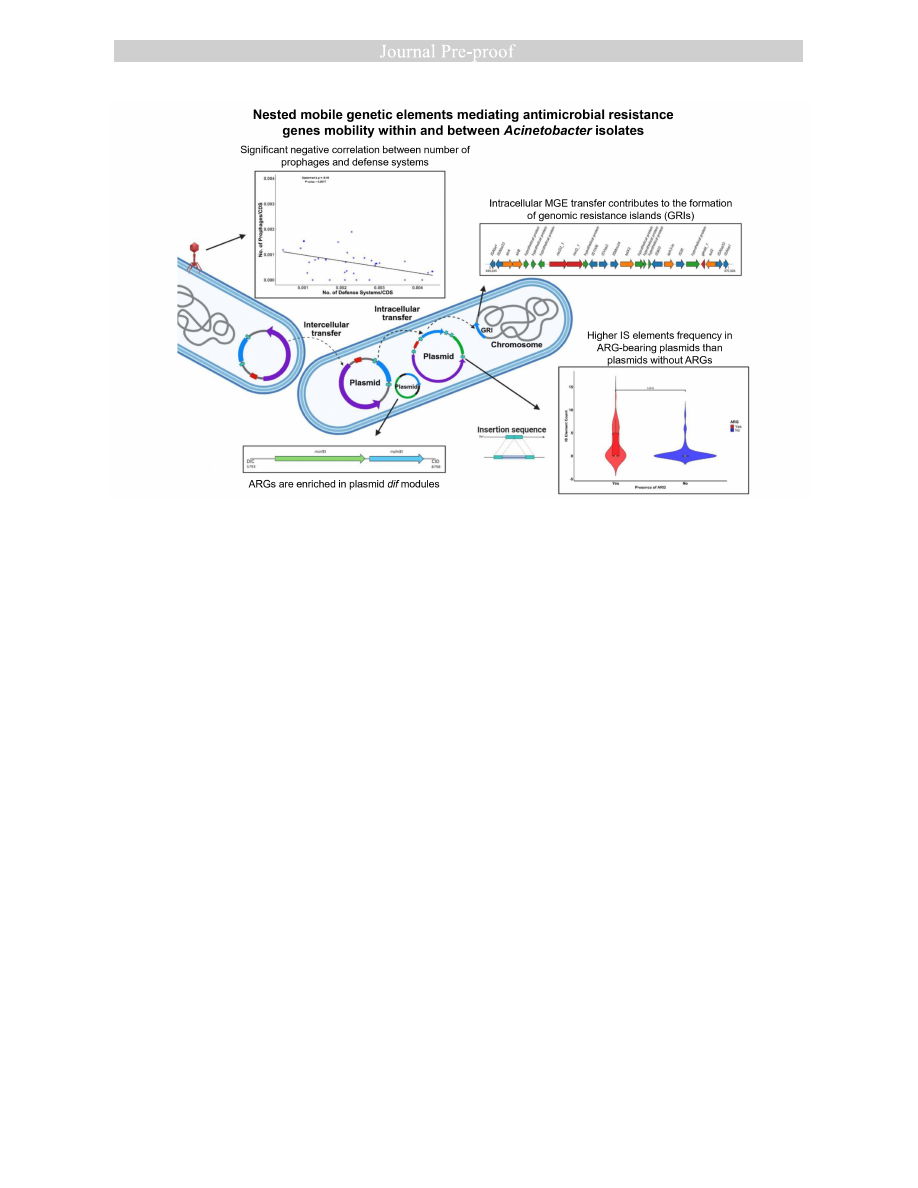

Nested mobile genetic elements mediating antimicrobial resistance genes mobility

within and between Acinetobacter isolates

Kenneth Bongulto

1,2

, Ngure Kagia

1,2

, Hisamichi Tauchi

, Satoru Suzuki

, Kozo

Watanabe

1, *

Center for Marine Environmental Studies (CMES), Ehime University, Bunkyo-cho 3,

Matsuyama, Ehime 790-8577, Japan

Graduate School of Science and Engineering, Ehime University, Bunkyo-cho 3,

Matsuyama, Ehime 790-8577, Japan

Ehime University Graduate School of Medicine, Toon, Ehime, Japan

ADDRESS CORRESPONDENCE TO LEAD CONTACT

Kozo Watanabe (watanabe.kozo.mj@ehime-u.ac.jp)

KEYWORDS

Acinetobacter

, mobile genetic elements, antimicrobial resistance genes, intracellular

MGEs, intercellular MGEs, genomic island

Journal Pre-proof

SUMMARY

Mobile genetic elements (MGEs) play a central role in the acquisition and dissemination

of antibiotic resistance genes (ARGs). This study analyzed the distribution of MGEs using

the whole-genome sequences of 38

Acinetobacter

isolates from patient, environmental,

and pig waste samples. Pig waste isolates exhibited the highest mean number of

plasmids, while prophages were more prevalent in environment-associated isolates.

Interestingly, we observed a significant positive correlation between number of plasmids

and number of defense systems. Co-localization of multiple ARGs within a single plasmid

was observed, with up to 10 distinct ARGs observed within a single p

dif

module.

Additionally, putative genomic resistance islands (GRIs) were identified in non-baumannii

Acinetobacter

species, representing the first documentation of GRIs outside the

Acinetobacter calcoaceticus-baumannii

(Acb) complex. This study provides new insights

into the mechanisms of ARG dissemination in

Acinetobacter

, particularly the role of MGEs

in facilitating hierarchical gene transfer processes.

INTRODUCTION

Horizontal gene transfer (HGT) is a fundamental driver of bacterial evolution, enabling

the rapid acquisition of beneficial genetic traits that enhance fitness and survival.

Through various mechanisms including transformation, conjugation, transduction, and

vesiduction, bacteria can acquire diverse functional genes.

Mobile genetic elements

(MGEs) serve as key mediators of these processes, facilitating gene transfer both within

and between cells.

3,4

These gene transfers are significant for bacterial adaptation,

particularly in the development of antimicrobial resistance.

The prevalence of MGEs,

including intracellular types (e.g. insertion sequences (IS) elements, transposons, and

Journal Pre-proof

integrons) and intercellular types (e.g. conjugative and mobilizable plasmids, prophages,

integrative conjugative elements (ICEs), integrative mobilizable elements (IMEs),

underscores their crucial role in bacterial evolution and adaptation to changing

environments.

6,7

Acinetobacter

species are well known opportunistic pathogens,

inhabiting various environments such as hospital settings, human and animal wastewater

and environmental waters. Infection caused by multidrug-resistant

Acinetobacter

has

been a significant concern. Research focusing on the frequency of MGEs and their

associated antibiotic resistance genes (ARGs) is essential to mitigate the risk of multidrug

resistance development in the genus

Acinetobacter.

While MGEs are present across all bacterial species, the frequency of different MGE

types can

vary significantly depending on the host bacterium’s ecology and environment.

For instance, prophages, an intercellular MGE type, display variable abundance between

Staphylococcus aureus

isolates, being present in human isolates but absent in pig

isolates.

Similarly, plasmids, which are extrachromosomal MGEs, are frequently

detected in livestock wastes.

The abundance of MGE types is also influenced by the

presence of defense systems that control HGT.

10,11

Bacteria utilize sophisticated defense

systems, such as CRISPR-Cas

12,13

and restriction modification systems,

which

recognize specific DNA sequences to target phages and plasmids.

The prevalence of ARGs varies across different MGE types. Previous studies have

shown that ARG prevalence is primarily elevated in intracellular MGEs types, such as

transposable elements (TEs).

15,16

Among intracellular MGE types, IS elements have been

shown to have higher ARG prevalence compared to integrons.

Among intercellular MGE

types, higher ARG prevalence has been reported in plasmids compared to

Journal Pre-proof

prophages.

17,18

Plasmids can be categorized as conjugative, mobilizable, or

nonmobilizable depending on the presence of conjugative genes such as relaxase and

conjugative coupling proteins.

Although plasmids are well-known ARG vectors, over

70% of plasmids lack ARGs.

Based on these observations, we hypothesize that

plasmids harbor a high frequency of ARGs due to the presence of IS elements that

accumulate ARGs.

Nested MGE structures, or intracellular MGEs embedded within an intercellular MGE,

mediate both intracellular and intercellular ARG transfer, forming sophisticated networks

of gene transfer.

21-23

One example of nested MGE structures is plasmids harboring IS

elements. Since IS elements are only capable of intracellular movement, a nested MGE

structure is vital for their efficient intercellular transfer. For example, IS elements can

mediate the intracellular transfer of ARGs from chromosomes to plasmids, while the

plasmids that receive these ARGs can mediate the intercellular transfer of ARGs. Notably,

IS elements demonstrate distinct distribution patterns between genomic compartments,

with plasmids showing significantly higher IS density compared to chromosomal

regions.

However, the frequency of IS elements among different types of intercellular

MGEs has yet to be fully characterized.

Genomic resistance island (GRI) are variable regions in the bacterial genome formed

through intracellular and intercellular ARG transfer.

These regions integrate MGEs,

including integrons and transposons, along with associated ARGs. In

Acinetobacter

baumannii

, GRIs have been extensively characterized, contributing to the development

of multidrug resistance by harboring different ARGs.

25-33

However, while studies have

documented GRIs in

A. baumannii

from several parts of the world, knowledge gaps

Journal Pre-proof

persist regarding the types of GRIs in non-

baumannii

species. Recent investigations have

identified genomic islands known as

A. baumannii

resistance islands (AbaR)-type GRIs

in non-

baumannii

species, such as

A. nosocomialis

and

A. seifertii

, demonstrating

interspecies transfer capabilities.

Notably, a significant knowledge gap exists regarding

the characteristics and prevalence of GRIs in non-

baumannii

species, particularly the

pathogenic

Acinetobacter calcoaceticus

– baumannii

(Acb) complex group.

The

present

study

examines

the

mechanisms

ARG

mobility

Acinetobacter

species from various sources (i.e., patient, environmental, and pig waste

samples), through comprehensive

in silico

analysis of genomic sequences, with particular

emphasis on MGEs and their role in ARG acquisition and dissemination. The aim of this

study is to characterize the hierarchical process of ARG transfer mediated by intracellular

and intercellular MGEs. Specifically, we investigated whether the frequencies of MGE

types in

Acinetobacter

species are influenced by source origins and their defense

systems. Additionally, we examined the ARG prevalence among different types of MGEs

and the co-localization patterns of ARGs within MGEs. Subsequently, we also analyzed

the nested MGE structures and investigated which type of intercellular MGEs exhibits a

high IS element frequency. Based on these results, we tested the hypothesis that ARGs

100

are frequently present in plasmids because IS elements frequently harbor ARGs and are

101

highly abundant in plasmids. Lastly, we discuss the intracellular and intercellular

102

movement of ARGs and how it contributes to the formation of genomic islands in

103

Acinetobacter.

104

RESULTS

105

Prevalence of mobile genetic elements in Acinetobacter isolates

106

Journal Pre-proof

Of the 38

Acinetobacter

isolates examined, IS elements (

= 1045) were the most

107

prevalent MGEs, followed by plasmids (

= 193) and prophages (

= 103)

(Figure S1A)

108

Integrative conjugative elements (ICEs) and integrative mobilizable elements (IMEs) were

109

the least prevalent (

= 28 and

= 13, respectively). Significant differences in the

110

frequencies of each MGE type were observed between environment- and pig waste-

111

associated isolates, specifically for IS, prophage, and plasmid

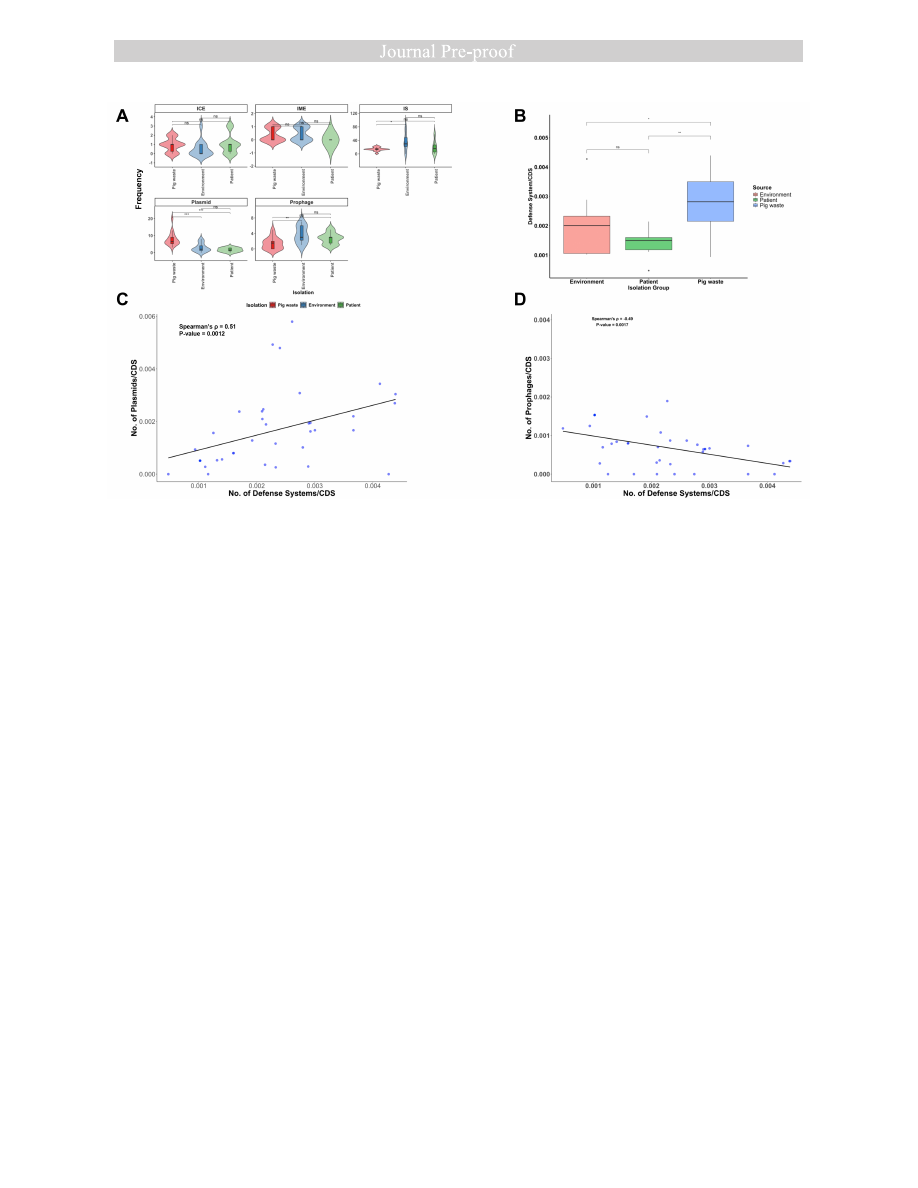

(Figure 1A)

. However,

112

there was no significant difference in the frequency of ICE and IME carriage among

113

Acinetobacter

isolates

IS elements were significantly more abundant in environment-

114

associated isolates than pig waste-associated isolates (

= 0.01, Kruskal-Wallis).

115

Additionally, environment-associated isolates had more prophages than pig waste-

116

associated isolates (

<0.01, Kruskal-Wallis). In contrast, plasmids were significantly

117

more prevalent in pig waste-associated isolates than in patient- and environment-

118

associated isolates (

< 0.0001, Kruskal-Wallis). We also observed a significant

119

difference in the mean frequencies of defense systems among

Acinetobacter

isolates

120

from different sources. Pig waste-associated isolates had a higher frequency of defense

121

systems than both environment- (

< 0.05, Kruskal-Wallis) and patient-associated

122

isolates (

<0.01, Kruskal-Wallis)

(Figure 1B)

. Furthermore, we observed a significant

123

positive correlation (

=0.001, Spearman correlation) between the number of plasmids

124

and the number of defense systems

(Figure 1C)

. Interestingly, we also found a significant

125

inverse correlation (

p =

0.002, Spearman correlation) between the number of defense

126

systems and the number of prophages in the

Acinetobacter

genomes

(Figure 1D)

. Our

127

analysis also revealed a distinct distribution pattern of defense systems between bacterial

128

chromosomes and plasmids. Specifically, plasmids predominantly harbor BREX_I,

129

Journal Pre-proof

SanaTA, and Retron_VI systems, while chromosomes encode diverse array of defense

130

mechanisms including Gabija, Gao_Mza, multiple restriction modification (RM) types (I,

131

II, IIG, III, IV), and Wadjet_I

(Figure S2)

132

ARG distribution, co-occurrence, and enrichment in plasmids

133

The extent of ARG carriage in different MGE types was also investigated. Most

134

ARGs were found to be associated with 42 plasmids and one integrative mobilizable

135

element (IME), with no ARGs detected in prophages or ICE regions. A total of 193

136

plasmids were identified in the 38

Acinetobacter

isolates. Most of the isolates' plasmid

137

repertoire consists of nonmobilizable plasmids (n = 105, 54.4%), mobilizable plasmids (n

138

= 81, 42.0%), and conjugative plasmids (n = 7, 3.6%)

(Figure S3A)

. Plasmid sizes

139

exhibited remarkable diversity, ranging from 1.4 kb to 657 kb

(Figure S3B)

. One hundred

140

thirty-nine plasmids (72%) could not be assigned to a plasmid typing scheme using the

141

rep gene

(Figure S3C)

. Similarly, relaxase were not detected in 105 plasmids (54.0%)

142

using the mob typing scheme

(Figure S3D)

143

A total of 42 plasmids were detected harboring various ARGs

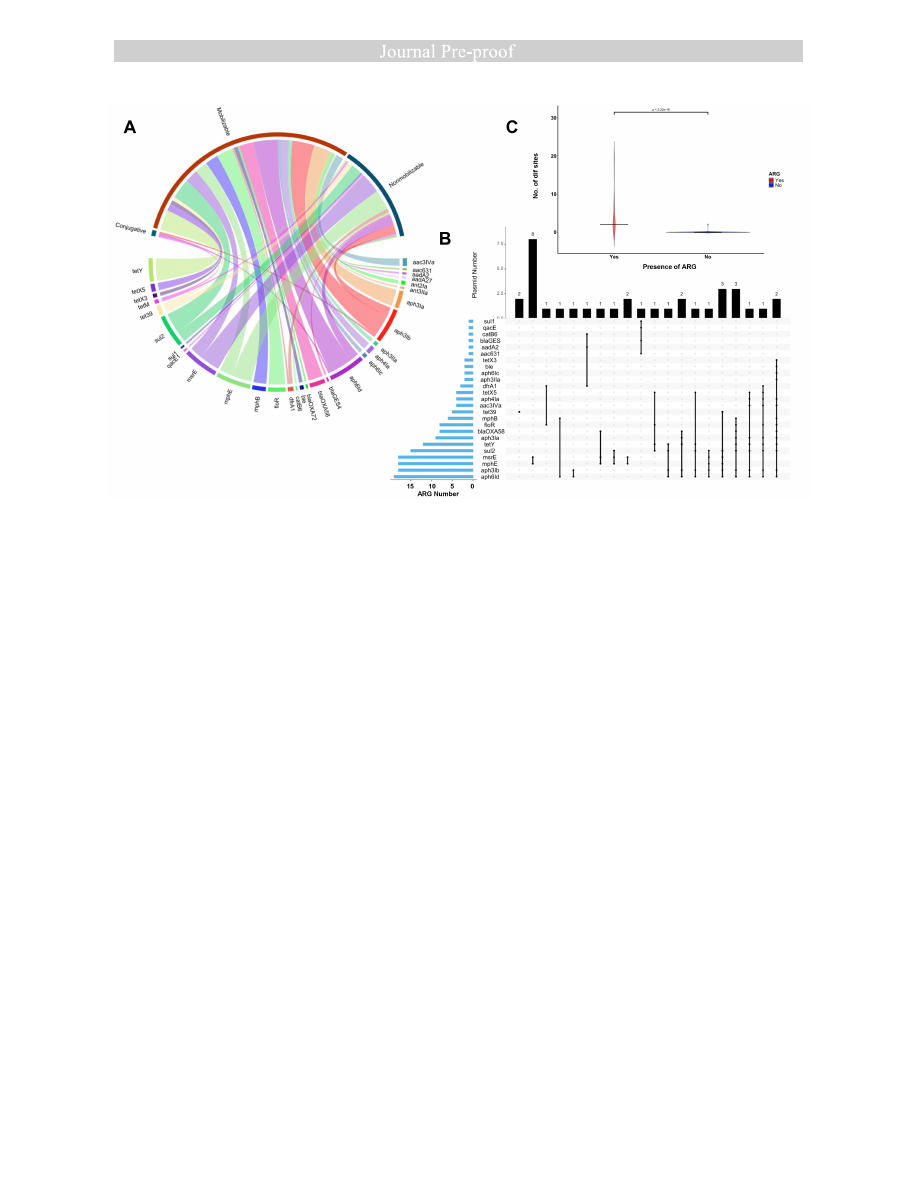

(Figure 2A)

. The

144

majority (40 out of 193 plasmids; 95.2%) were found in pig waste-associated isolates.

145

Large size plasmids (>100 kb) tend to harbor more ARGs (2-16 ARGs) and were

146

categorized as mobilizable or nonmobilizable. The proportion of plasmids harboring

147

ARGs was 28.6% (2/7) among conjugative plasmids, 29.6% (24/81) among mobilizable

148

plasmids, and 15.2% (16/105) among nonmobilizable plasmids

(Table S2)

. We revealed

149

different patterns of ARG co-localization in plasmids

(Figure 2B)

. Macrolide resistance

150

genes (

mph(E)

and

msr(E

))

and aminoglycoside resistance genes (

aph(3

”)-Ib

and

aph(6)-

151

)

tend to co-occur in 40.5% and 38.1% of ARG-carrying plasmids, respectively. While

152

Journal Pre-proof

sul2

and

aph(6)-

Id and

bla

OXA-58

and

aph(3”)-

Ia tend to co-occur in 33.3% and 16.67% of

153

ARG-carrying plasmids, respectively. Further analysis revealed that 19 pairs of ARGs

154

were co-localized on a single plasmid, showing significant associations (

= <0.05, using

155

Fisher’s test)

(Table S3).

Up to 14 different ARGs were detected on a single plasmid.

156

Nine prophage regions were also detected in eight plasmids. However, no ARGs were

157

directly encoded within the prophage regions of these plasmids.

158

We assessed the presence of p

dif

sites or plasmid site-specific recombination sites

159

in all ARG-carrying plasmids, as well as investigating whether these sites were associated

160

with the acquisition of ARGs. As many as 20 p

dif

sites were detected in a single ARG-

161

bearing plasmid. Multiple ARG types were flanked by these p

dif

sites, forming ARG p

dif

162

modules (

Figure S4A-S4G)

. In total, seven different ARG p

dif

modules were identified:

163

dif-

(

msr(E)-mph(E)

), p

dif

tet(39)

), p

dif

bla

OXA-58

), p

dif

aph(3”)-Ib – aph(6)-Id – tet(Y) –

164

aph(3

’’)-Ia

), p

dif

aph(3

”)-Ia – tet(Y) – aph(6)-Id – aph(3”)-Ib – floR – mph(B) – sul2

), p

dif

165

(

sul2

– aph(3”)-Ib – aph(6)-Id

), and p

dif

aph(4)-Ia

– aac(3)-IVa – aph(3”)-Ia – aph(3”)-Ib

166

– aph(6)-Id – tet(Y) – tet(X5) – floR – dfrA1 – sul2

). The number of ARGs in p

dif

modules

167

ranged from 1 to 10 per module. Plasmids with ARGs had more p

dif

sites than those

168

without ARG (

= 2.2 x 10

-16

, Wilcoxon test)

(Figure 2C)

. Furthermore, there was a

169

significant association between the number of p

dif

sites and the number of ARGs in ARG-

170

carrying plasmids (

= 2.3 x 10

-25

, using Fisher's test).

171

Nested MGE structures in Acinetobacter

172

A total of 29 types of IS elements were detected among 193 plasmids

(Figure

173

S5A)

. The most prevalent IS elements were ISAba14 (n=23) and IS17 (n=23), followed

174

by ISOur1 (n=20), ISAba34 (n=19), and IS1006 (n=18). We examined whether ARG

175

Journal Pre-proof

enrichment in plasmids is associated with the presence of IS elements. Plasmid-bearing

176

ARGs possessed more IS elements compared to plasmids without ARGs (

p =

0.0012,

177

Wilcoxon test)

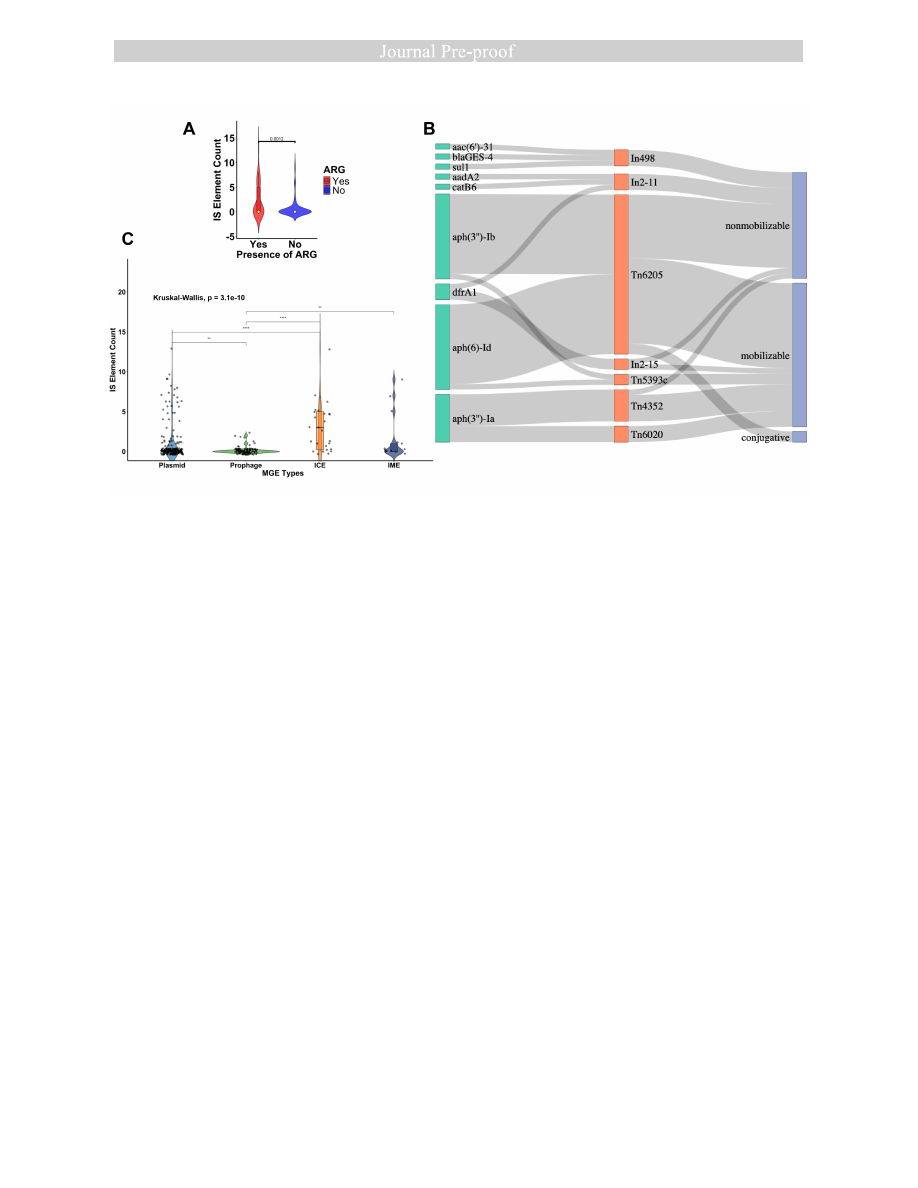

(Figure 3A)

. The number of IS elements was positively correlated with the

178

plasmid size

(Figure S5B)

. The Sankey plot analysis showed that nine ARGs existed in

179

TEs on plasmids (

Figure 3B)

. The aminoglycoside resistance genes,

aph(6)-Id

and

180

aph(3”)-Ib,

both occurred on Tn6205, while

aph(3”)-Ia

was found on Tn4352.

181

Furthermore, ARGs such as

dfrA1

bla

GES-4

aac(6’)-31

aadA2

, and

catB6

were identified

182

within gene cassettes associated with integrons.

183

Among the four types of intercellular MGEs, IS elements were predominantly found

184

in conjugative elements such as plasmids and ICEs. The frequency of IS carriage was

185

significantly different between plasmids and prophages (

<0.0001, Kruskal-Wallis), as

186

well as between ICEs and prophages (

<0.001, Kruskal-Wallis)

(Figure 3C)

. The

187

frequency of IS elements also varies among plasmid types, with mobilizable and non-

188

mobilizable plasmids possessing more IS elements (

Figure S5C

). Furthermore, no

189

significant difference was observed in the frequency of IS element carriage among

190

plasmids from different isolation sources (patient, pig waste, environment) (

= 0.6,

191

Kruskal-Wallis) (

Figure S5D)

. However, the types of IS elements varied among plasmids

192

isolated from different isolation sources, with some types being exclusively found in

193

plasmids from a specific isolation source (

Figure S6)

194

Duplication of ARGs on the same plasmid was also observed. Some of the ARGs

195

that showed duplication were aminoglycoside resistance genes, such as

aph(3”)-Ib,

196

aph(6)-

Id, ant(2”)-Ia,

and macrolide resistance genes

msr(E),

and

mph(E) (Table S4)

197

Additionally, we revealed that several plasmids from different bacterial hosts possessed

198

Journal Pre-proof

similar set of ARGs (

Figure S7A)

or possessed similar plasmids with the same set of

199

ARGs and other functional genes

(Figure S7B

). We demonstrated the potential

200

movement of macrolide resistance genes (

msr(E)

and

mph(E

)) and aminoglycoside

201

resistance genes (

aph(3”)-Ib

and

aph(6)-Id

) between different plasmids in different hosts.

202

A similar set of ARGs and functional genes was also observed between co-residing

203

plasmids. Specifically, this was observed for the

aph(3”)-Ib

and

aph(6)-Id

sul2,

and

204

msr(E)

and

mph(E)

genes (

Figure S8A-S8C)

205

Nine prophage regions, ranging in size from 44 to 183 kilobases, were identified

206

across eight plasmids. Individual plasmids harbor from one or two prophages. Notably,

207

these prophages were not associated with

Acinetobacter

as their host bacterium; rather,

208

they represented various phage types, including Escher_RCS47, Stx2_c_1717,

209

Escher_PA28, Entero_VT2phl, Stx2_II, Staphy_Spbeta, Faecal_FP_Taranis, and

210

Salmon_epsilon15 (

Table S5)

. Out of the 8 prophages detected in plasmids, 6 (75%)

211

were found to be intact or complete. Furthermore, we observed that prophage regions in

212

plasmids exhibited a significantly higher frequency of IS elements than those located

213

within the chromosomes (

p =

7.5e-13, Wilcoxon test)

(Figure S9A)

. We also found that

214

intact prophages had a significantly higher frequency of IS elements compared to

215

incomplete prophages (

p =

0.03, Kruskal-Wallis)

(Figure S9B)

216

Genomic islands in non-baumannii species

217

We detected four putative genomic islands in non-

baumannii

pig waste-associated

218

isolates possibly mediated by intracellular ARG transfer from plasmids to chromosomes.

219

The ARG synteny analysis revealed that mobilizable ARG regions in plasmids of the pig

220

Journal Pre-proof

waste-associated isolates showed high sequence similarity with the ARG regions in the

221

chromosome of the host bacteria. Furthermore, transposable elements in plasmids

222

showed homologous regions within the chromosome. The first GRI type was detected in

223

a plasmid of

A. towneri

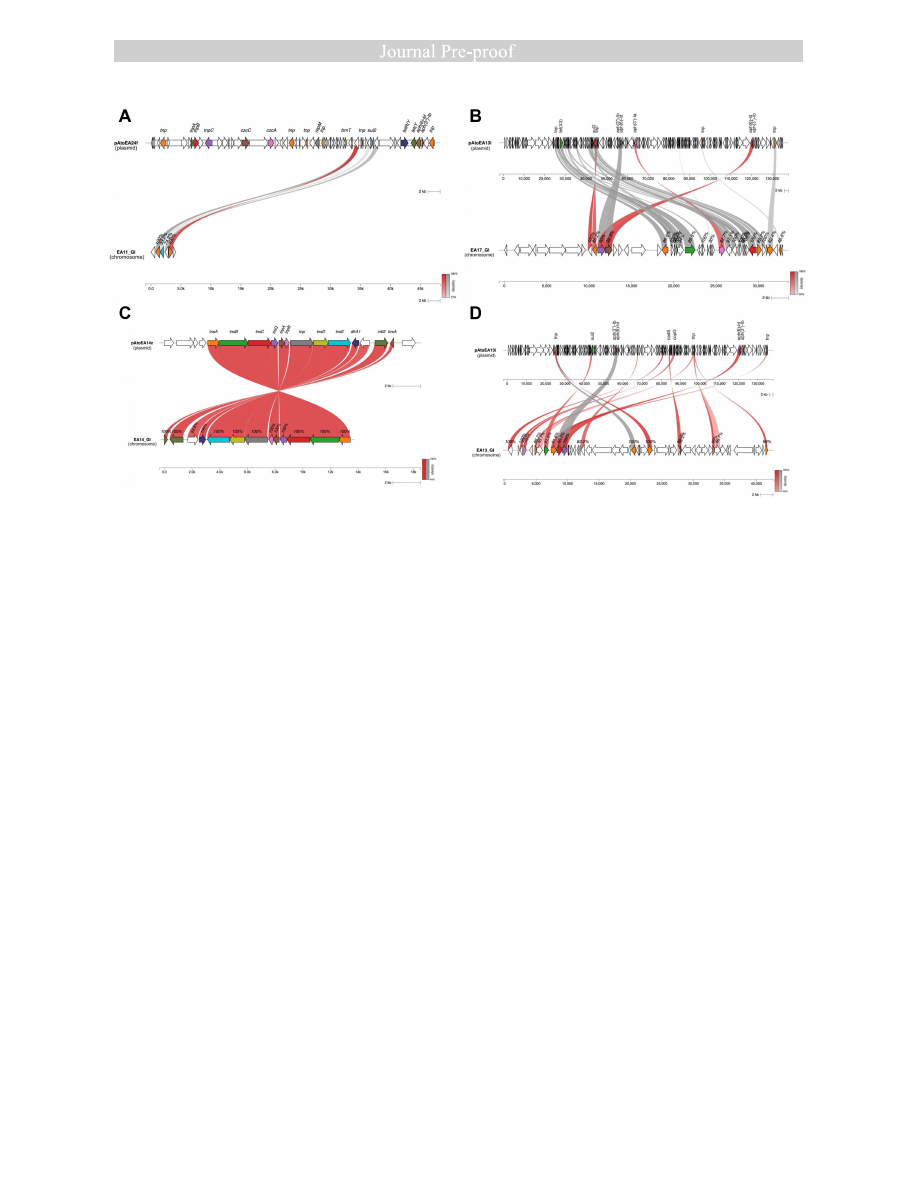

(EA24) flanked by IS1006 and containing a sulfonamide

224

resistance gene, as well as cobalt, zinc, and cadmium resistance gene

czcA

gene

(Figure

225

4A)

. The second GRI type, observed in

A. towneri

(EA13), was marked by an IS3 family-

226

bound GRI containing resistance genes (

aph(3

”)-Ib, aph(6)-Id,

and

sul2

), metal resistance

227

genes (

copA, copB, merR, zitB,

czcABD

), and a toxin/anti-toxin system

(Figure 4B)

. The

228

third GRI type included an integron class 2, associated with the Tn7 transposon family,

229

and was identified in

A. towneri

(EA14), harboring a gene cassette bearing a trimethoprim

230

resistance gene (

dfrA1

)

(Figure 4C)

. The fourth GRI type, observed in

A. haemolyticus

231

(EA17), featured an ISAba1-bound GRI that contained aminoglycoside resistance genes

232

(

aph(3

”)-Ia

aph(3

”)-Ib

, and

aph(6)-Id

); a tetracycline resistance gene (

tet(X3)

); and

233

sulfonamide resistance gene (

sul2

)

(Figure 4D)

234

DISCUSSION

235

Mobile genetic elements (MGEs) are abundant, and their distribution varies in the

236

bacterial genome. A notable differentiation in the distribution of MGEs based on the

237

isolation source was observed in our study. Plasmids were abundant in pig waste-

238

associated isolates, whereas they were rare in patient- or environment-associated

239

isolates. These findings are consistent with previous studies, which have reported the

240

widespread plasmids and demonstrated a strong positive correlation between the

241

numbers of plasmids and ARGs per cell.

35,36

Specifically, integrons and conjugative

242

plasmids, which are widely distributed in livestock waste, serve as key vectors for ARG

243

Journal Pre-proof

dissemination via HGT.

37,38

The extensive use of antibiotics in pig farming imposes

244

significant selective pressure, favoring bacterial populations that harbor ARG-bearing

245

plasmids.

246

In contrast, prophages were observed at a higher frequency in environment-

247

associated isolates compared to those from patients or pig waste. This trend corresponds

248

with prior studies that identified a high prevalence of prophages in environments such as

249

wastewater treatment plants (WWTPs), which harbor diverse bacterial populations of

250

human origin.

A large-scale analysis of prophages from 13,713 complete prokaryotic

251

genomes also identified genera such as

Acinetobacter

Enterobacter

, and

Pseudomonas

252

as major prophage reservoirs.

Furthermore, it has been reported that prophages were

253

frequently detected in human-derived

Staphylococcus aureus

isolates compared to those

254

from pig origin.

While this study revealed a significant difference in terms of MGE

255

frequency among

Acinetobacter

isolates from different sources,

the limited sample size

256

precludes definitive conclusions about the general distribution of MGEs across the

257

Acinetobacter

population.

258

To further investigate the factors influencing the frequency of MGEs, we examined

259

the presence of bacterial defense systems within each

Acinetobacter

genome. Notably, a

260

negative correlation was observed between the number of defense systems and the

261

number of prophages, highlighting a possible role of defense systems in restricting

262

prophage acquisition. This observation is consistent with findings from Kohgay et al.

who

263

reported fewer phage-related genes in bacterial genomes with a higher abundance of

264

defense systems.

Similarly, Costa et al. demonstrated that an increase in defense

265

Journal Pre-proof

systems enhances bacterial resistance to phage infections, further supporting their

266

involvement in limiting prophage acquisition.

267

Interestingly, we observed a compartmentalized organization of bacterial defense

268

systems between the bacterial chromosomes and plasmids. Isolates derived from pig

269

waste exhibited the highest frequency of defense systems and plasmids. Additionally, we

270

observed a significant positive correlation between the numbers of defense systems and

271

plasmids. Notably, the plasmid-specific enrichment of BREX_I, SanaTA, and Retron_VI

272

systems were observed. Plasmids, while known as principal vectors of ARG

273

dissemination, also carry diverse defense systems, which protect host bacteria from

274

phage infections. Recent studies (emphasized the strong association between plasmids

275

and bacterial defense systems, with plasmids playing a pivotal role in the accumulation

276

and dissemination of these systems across bacterial genomes.

44,45

277

Based on these observations, we propose a hypothetical model wherein isolates

278

originating from pig waste environments acquire plasmids carrying multiple ARGs under

279

the selective pressure of high antibiotic use. These plasmids may additionally harbor

280

defense systems that protect the host bacteria against phages. Future experimental

281

studies are needed to validate this hypothesis and further elucidate the interplay between

282

plasmids, defense systems, and prophage dynamics in different environmental contexts.

283

Our analysis also revealed that ARGs in

Acinetobacter

isolates were

284

predominantly associated with plasmids. Notably, the ARG carriage accounted for only

285

21% of the total plasmids identified across all isolates, consistent with former findings

286

indicating that more than 70% of plasmids lack known resistance genes.

Interestingly,

287

most ARGs in this study were found in mobilizable and non-mobilizable plasmids, in

288

Journal Pre-proof

contrast to other studies showing an enrichment of ARGs in conjugative plasmids.

289

Distinct patterns of ARG co-localization were observed in plasmids. For instance, beta-

290

lactamase gene

bla

OXA-58

was co-localized with aminoglycoside resistance gene (

aph

(

”)-

291

), while

sul2

was co-localized with

aph

(

)-Id. Such co-localization suggests

292

mechanisms of co-resistance or the encoding of multidrug resistance, potentially

293

promoting the survival and emergence of multidrug-resistant

Acinetobacter

strains. The

294

conservation of such ARG clusters indicates that they may be transferred or inherited as

295

a single unit.

296

Furthermore, ARG enrichment was identified within p

dif

modules in plasmids

297

carrying ARGs. The

dif

site comprised a 28 bp DNA sequence featuring two 11 bp Xer

298

protein binding motifs arranged in an inverted repeat configuration, with a 6 bp central

299

region.

In plasmids, this

dif

site is referred to as the p

dif

module, often occurring in

300

multiple copies throughout the plasmid DNA. Previous studies have reported p

dif

module-

301

associated ARG enrichment in

Acinetobacter

plasmids.

48,49

However, this study, to the

302

best of our knowledge, is the first to document up to 10 different ARGs localized within a

303

single p

dif

module.

304

While ARGs are predominantly associated with transposable elements (TEs) and

305

plasmids, their occurrence within prophage regions showed considerable variation across

306

bacterial species. Comprehensive genomic studies of clinical isolates generally report a

307

lack of ARGs in the prophage regions of

Pseudomonas aeruginosa

Escherichia coli

308

and

Staphylococcus aureus

However, contrary findings have demonstrated ARG

309

presence within prophage regions of

A. baumannii

isolates.

In contrast to the findings

310

of Loh et al.

and consistent with earlier studies on other bacterial species,

50-52

our

311

Journal Pre-proof

analysis detected no ARGs in prophage regions of

Acinetobacter

genomes. This absence

312

may be attributed to the size constraints of phages, which limit their ability to carry

313

accessory genes like ARGs.

Additionally, the discrepancy with previous studies may

314

stem from advancements in prophage detection tools. Our study utilized the latest

315

iteration of PHASTEST for prophage prediction, which integrates the Prodigal algorithm,

316

characterized by reduced false-positive and false-negative rates for open reading frame

317

(ORF) identification. Previous studies employed an earlier version of PHASTER,

318

potentially leading to the detection of ARG-containing prophages that are not confirmed

319

with the updated toolset. This difference highlights the need for methodological

320

standardization in prophage analysis. Nonetheless, the limited presence of ARGs in

321

prophage regions supports the notion that plasmids are the primary vehicles ARG transfer

322

Acinetobacter

323

We then analyzed the potential role of the nested structure of MGEs in the

324

intracellular and intercellular movement of ARGs

in silico

. We observed that ARGs in

325

plasmids were primarily associated with intracellular MGEs, consistent with previous

326

findings that ARGs are frequently linked to transposable elements and integrons.

327

Although IS-harboring plasmids carrying ARGs accounted for only 8% of the analyzed

328

plasmids, the presence of IS elements highlights their role in facilitating gene shuffling

329

and replication both within and between plasmids.

330

IS elements can also transfer from plasmids to chromosomes, enabling bacteria

331

to maintain HGT capabilities while reducing the metabolic burden with plasmid

332

maintenance.

IS elements linked to ARGs are key indicators of resistance transfer

333

risk.

4,56

Interestingly, we observed ARG-bearing plasmids had a higher frequency of IS

334

Journal Pre-proof

elements compared to plasmids without ARGs. This aligns with previous studies showing

335

that higher density of IS elements in plasmids is associated with ARG carriage.

5,57

These

336

findings may indicate that nested MGEs facilitate hierarchical ARG transfer, potentially

337

promoting the movement of ARGs between plasmids, chromosomes, and even across

338

cells, enhancing overall ARG dissemination.

339

We also examined the presence of prophages within plasmids, often referred to as

340

“phage-plasmids,” which have been identified in notable pathogens such as

Escherichia,

341

Acinetobacter, Klebsiella,

and

Salmonella

58,59

For instance, in

E. coli

, the plasmid

342

p1108-IncY exhibits high nucleotide sequence identity with phage P1, suggesting

343

lysogenization via genetic integration.

Similarly, prophage regions have been identified

344

A. baumannii

plasmids.

In our study, we detected phage-plasmids in non-

345

baumannii

Acinetobacter

species, such as

A. towneri

and

A. guillouiae.

346

Subsequently, our synteny analysis revealed a potential intracellular transfer of

347

multiple ARGs from plasmids to chromosomes playing a significant role in the formation

348

of genomic islands (GIs). These are variable chromosomal regions that, when enriched

349

with resistance genes, are referred to as genomic resistance islands (GRIs). This transfer

350

is primarily mediated by transposable elements, especially when ARGs are co-localized

351

with transposons or integrons. These findings suggest that ARG movement within

352

bacterial cells (e.g., from plasmids to chromosomes) is a key driver in the formation of

353

new GRIs. While these co-localizations suggest potential horizontal gene transfer (HGT),

354

they represent indirect indicators rather than definitive proof of active gene movement.

355

These findings should be interpreted cautiously as markers of shared mobile genetic

356

structures rather than confirmed transfer events. Direct experimental verification through

357

Journal Pre-proof

conjugation or transformation assays would be necessary to definitively establish the

358

mobility of these genetic elements.

359

GRIs have been extensively studied in

Acinetobacter

, especially in clinical and

360

pathogenic isolates. In

A. baumannii

, numerous GRIs have been identified and

361

characterized.

27,28,30,31,62-65

. However, studies on GRIs in non-

baumannii

species are

362

limited and have mainly focused on clinical isolates from the

Acinetobacter calcoaceticus-

363

baumannii

(Acb) complex, including

A. nosocomialis

and

A. seifertii

364

In this study, we identified GRIs in non-

baumannii

strains isolated from pig farm

365

wastewater and discovered GRI structures that distinctly differ from those previously

366

reported in clinical isolates.

30,31,63

Remarkably, this represents the first report of GRIs in

367

non-

baumannii

species outside the Acb complex. The discovery of these GRI structures

368

in non-

baumannii

isolates highlights their adaptation to distinct selective pressures

369

encountered in non-clinical environments, such as those characteristics of pig waste.

370

Plasmids isolated from pig waste-associated isolates exhibited a notable enrichment of

371

distinct ARG types not commonly observed in patient- and environment-associated

372

isolates. Transposition of these ARGs from plasmid to the chromosome perhaps gives

373

rise to the formation of putative genomic resistance islands.

374

Limitations of the study

375

This work has several limitations that should be acknowledged when interpreting

376

the findings. The relatively small number of

Acinetobacter

isolates (i.e. number of clinical

377

isolates) reduces statistical power, hindering the detection of rare mobile genetic

378

elements and low-frequency ARG-MGE associations, and it limits the generalizability of

379

Journal Pre-proof

the results across different ecological niches, geographic regions, or clinical contexts.

380

Furthermore, the reported relationships among MGEs, ARGs, and defense systems are

381

correlative and do not establish causality. Experimental validation is required to determine

382

whether the co-occurrence reflects direct mechanistic interactions or is driven by shared

383

selective pressures or population structure. Overall, these limitations underscore the need

384

for larger, more diverse datasets and complementary experimental approaches to

385

strengthen confidence in the inferred ARG-MGE dynamics.

386

387

RESOURCE AVAILABILITY

388

Lead contact

389

Request for additional information or resources should be addressed to the lead contact,

390

Professor Kozo Watanabe (watanabe.kozo.mj@ehime-u.ac.jp), who will handle all such

391

inquiries.

392

Materials availability

393

Materials will be made available upon request.

394

Data and code availability

395

•

Data: The study did not generate new set of sequences.

396

•

Code: This paper does not report any original code. All details related to

397

supplementary software used for the analysis are listed in the key resource table.

398

•

All other items: The study sought approval from the Ehime University Hospital

399

Clinical Research Ethics Review Committee with approval number 2511001. Any

400

Journal Pre-proof

further details necessary to reproduce the data presented in this study can be

401

obtained from the corresponding lead contact upon request.

402

AUTHOR CONTRIBUTIONS

403

Conceptualization, K.A.B, S.S., and K.W.; methodology, K.A.B, N.K., H.T., S.S.,

404

investigation, K.A.B., formal analysis, K.A.B., N.G., and K.W.; writing- original draft,

405

K.A.B.; writing- reviewing and editing, K.A.B., N.G., H.T., S.S., and K.W.; project

406

administration, K.A.B. and K.W. visualization; K.A.B.; funding acquisition, K.W.;

407

supervision, S.S. and K.W.

408

409

ACKNOWLEDGEMENTS

410

This research was performed by the Environment Research and Technology

411

Development Fund (SII-12-1 (3)) of the Environmental Restoration and Conservation

412

Agency provided by Ministry of the Environment of Japan. This research was supported

413

by the Japan Society for the Promotion of Science (JSPS) Grant-in-Aid for Scientific

414

Research (A) (20H00633).

415

416

DECLARATION OF INTERESTS

417

The authors declare no competing interests.

418

419

420

Journal Pre-proof

FIGURES TITLES & LEGENDS:

421

Figure 1. Frequency of mobile genetic elements (MGEs) and defense systems

422

across different isolation sources.

The frequency of integrative conjugative

423

elements (ICEs) and integrative mobilizable elements (IMEs) in

Acinetobacter

424

chromosomes. Frequency of insertion sequence (IS) elements in the chromosome of

425

Acinetobacter

species (*

<0.05). Plasmid counts among patient-, pig waste- and

426

environment-associated isolates (***

<0.001). Number of prophages integrated in the

427

chromosome of

Acinetobacter

isolates (**

<0.01). Data are presented as median with

428

interquartile range.

The frequency of defense systems in

Acinetobacter

species across

429

different isolation sources (

<0.05, **

<0.01). Kruskal-Wallis test was performed to

430

compare the average number of MGEs and defense systems among

Acinetobacter

431

isolates. Data are presented as median with interquartile range.

Correlation plot of the

432

number of plasmids and number of defense systems using Spearman’s rank correlation

433

(R=0.51,

=0.0012).

Correlation plot of the number of prophages and number of

434

defense systems using Spearman’s rank correlation (R=-0.49,

=0.0017). Each dot

435

represents a genome (n=38).

436

Figure 2. ARG distribution, co-occurrence, and enrichment in Acinetobacter

437

plasmid. A.

Chord diagram showing the association of ARGs with different plasmid types.

438

Upset plot showing the ARG number in blue bar plots, ARG co-localization patterns

439

shown in interconnected dots and number of plasmids having the ARG co-localization

440

pattern in black bar plots.

Comparison of the number of p

dif

sites between ARG-

441

bearing plasmids and plasmids without ARGs (

<2.22e-16). Wilcoxon test was

442

performed to compare the average number of IS elements and number of p

dif

sites

443

Journal Pre-proof

between ARG-bearing plasmids (red) and plasmids without ARGs (blue). Data are

444

presented as median with interquartile range.

445

Figure 3. Nested MGE structures in Acinetobacter. A.

Comparison of IS element

446

carriage between ARG-bearing plasmids and plasmids without ARGs (

= 0.0012). Data

447

are presented as median with interquartile range.

Sankey plot showing the association

448

of antimicrobial resistance genes (green) in nested MGEs - transposable elements

449

(orange) and different plasmid types (blue).

Frequency of IS elements among different

450

intercellular MGE types (**

<0.01, ****

<0.0001). Kruskal-Wallis test was performed to

451

compare the frequency of IS elements in A and C. Data are presented as median with

452

interquartile range.

453

Figure 4. Genomic resistance islands (GRIs) in non-baumannii isolates. A.

ARG

454

synteny analysis showing homologous region of

sul2

gene between plasmid pAtoEA24f

455

(

A. towneri

) and chromosome of

A. indicus

EA-11.

. ARG movement from a co-residing

456

plasmid pAtoEA13i (

A. towneri

) into the chromosome (

A. towneri

EA-13)

ARG synteny

457

analysis showing homologous region of

dfrA1

gene in an integron of plasmid pAtoEA23i

458

(

towneri

) and a plasmid pAtoEA14c from a different bacterial host (

A. towneri

). The

459

same region was found integrated into the chromosome of

A. towneri

EA-14

. D.

ARG

460

synteny analysis of ARGs from plasmid pAtoEA13i (

A. towneri

) and genomic island in

461

haemolyticus

EA-17. Red lines indicate high sequence similarity matches while gray lines

462

indicate reverse or inverted synteny.

463

464

STAR

★

METHODS

465

Journal Pre-proof

EXPERIMENTAL MODEL AND STUDY PARTICIPANTS DETAILS

466

Microbe Strains

467

The study involves 38

Acinetobacter

strains from different isolation sources. Nine

468

strains including

A. baumannii, A. junii, A. pittii, A. guillouiae, A. bereziniae,

and

A. ursingii

469

were obtained from the Ehime University Hospital. All clinical isolates were prepared in

470

glycerol stocks and were anonymized. Eighteen strains such as

A. indicus, A.

471

haemolyticus, A. johnsonii, A. amyesii,

and

A. towneri

were isolated from pig wastewater

472

sample. One strain was isolated from the river water (

A. pittii

) and coastal area (

473

johnsonii

). While 9 strains including

A. baumannii, A. junii, A. calcoaceticus,

and

A. pittii

474

were isolated from municipal wastewater sample.

475

Bioethical Clearance

476

The study sought approval from the Ehime University Hospital Clinical Research

477

Ethics Review Committee with approval number 2511001. The clinical isolates from

478

glycerol stock cultures used in this study were anonymized.

479

480

METHOD DETAILS

481

Data Collection

482

The datasets, namely plasmid sequences and chromosome sequences of 38

483

Acinetobacter

species from the different co-selection patterns of ARGs and virulence

484

genes,

were retrieved from the NCBI database under the BioProject accession number

485

PRJNA1184881. We note that the previous study did not probe into the composition and

486

Journal Pre-proof

association of MGEs and ARGs. Our set of 38

Acinetobacter

isolates originated from

487

patients (

=6), pig wastewater (

=18), municipal wastewater (

=9), natural surface water

488

(

=2), and hospital environment (

=3)

(Table S1)

We categorized the 38

Acinetobacter

489

strains into patient-associated (

=6), pig waste-associated (

=18), and environment-

490

associated (

=14) groups. The patient-associated isolates include strains isolated from

491

patients’ sputum, stool, and saliva. Strains isolated from hospital environment, municipal

492

wastewater treatment plants, river, and coastal area were classified into the environment-

493

associated isolates. Lastly, strains isolated from the pig farm wastewater were considered

494

as pig waste-associated isolates since the influent sample primaril

y originated from pigs’

495

waste

496

Two complementary sequencing approaches were employed in the previous

497

study

. First, long-read sequencing was performed using Oxford Nanopore Technology,

498

where genomic DNA (~1µg) was subjected to library preparation following the Oxford

499

Nanopore Technologies’ protocol for environmental bacteria. The DNA library was

500

prepared using the Ligation Sequencing Kit protocol (SQK-LSK109) and the long-read

501

sequences were generated using the MinION FLO-MIN106D flow cell and a MinION

502

MK1B sequencing device (Oxford Nanopore Technology). Finally, MinKNOW v23.07.12

503

software was used for data acquisition. To complement the long-read sequencing data,

504

short-read sequencing was conducted using a NovaSeq 6000 S4 Reagent Kit (2 x 150

505

bp paired-end read setting) and sequencing was performed on an Illumina NovaSeq 6000

506

sequencer at Eurofins Genomic Ltd.

507

The hybrid assembled genome of

Acinetobacter

isolates were used to extract MGE

508

sequences. The plasmid dataset (

=193) only includes circularized DNA and complete

509

Journal Pre-proof

sequences. Other intercellular MGEs (e.g. prophages, integrative conjugative elements,

510

integrative mobilizable elements) were extracted from the chromosome sequences.

511

Further, chromosome and plasmid sequences were used to identify intracellular MGEs,

512

such as IS elements, transposons, and integrons.

513

514

QUANTIFICATION AND STATISTICAL ANALYSIS

515

Bioinformatics analysis

516

Plasmid identification was conducted by predicting the mob and rep genes.

517

Plasmid types were predicted using the parameter mob_typer in MOB-suite v3.1.8

518

which searched for the presence of the oriT, relaxase, and mate-pair formation in the

519

plasmid sequence. Plasmids possessing either oriT or relaxase but missing the mate-

520

pair formation were considered as mobilizable, while plasmids without an oriT and

521

relaxase were considered nonmobilizable. Plasmid rep typing was conducted using

522

blastn

with the parameter -perc_identity 95 against the

Acinetobacter

Plasmid Typing

523

(APT) scheme v3.0.

Prophage regions in both chromosomes and plasmids were

524

predicted using the default parameter of PHASTEST.

MobileElementFinder

was used

525

to identify IS elements. Transposons were detected using BacAnt

with the minimum

526

identity threshold of 90% and 60% coverage. Integrons were detected using the

527

parameter

–local-max in Integron Finder v.2.0

to allow for a more sensitive search and

528

minimize the false positive rate. Integrative conjugative elements and integrative

529

mobilizable elements were predicted using the default parameter of ICEberg 2.0

530

Genomic islands and p

dif

modules were predicted using the default parameter of

531

Journal Pre-proof

IslandViewer 4

and pdifFinder

, respectively. To predict ARGs in MGE sequences,

532

Abricate

was used with the CARD v3.2.4

and ResFinder v.4.6.0

databases with a

533

minimum identity threshold and minimum coverage threshold of 90%. Lastly, defense

534

genes were predicted using the DefenseFinder tool.

535

Gene synteny analysis

536

Each MGE sequence was annotated using Bakta

and the full database version

537

(v.5.0) was used to obtain the best annotation results. The annotated .gbk files were used

538

for the gene synteny analysis using the R package geneviewer v0.1.6.

The sequences

539

of ARG-bearing plasmids and genomic islands in chromosome were used for the ARG

540

synteny analysis.

541

Visualization and Statistical analysis

542

The frequency of IS elements, plasmids, prophage regions, integrative conjugative

543

elements (ICEs), and integrative mobilizable elements (IMEs), as well as defense

544

systems among patient-, pig waste-, and environment-associated

Acinetobacter

isolates

545

were determined using Kruskal-Wallis test with post hoc Wilcoxon rank-sum test.

546

Statistical significance was considered at

<0.05. Additionally, the correlation between

547

the number of plasmids and number of defense systems, and between number of

548

prophages and number of defense systems were examined. The number of defense

549

systems, plasmids, and prophages were normalized using the total number of protein-

550

coding sequences (CDS). The correlations were evaluated using the cor function in R

551

v.4.2.0. with statistical significance set at

< 0.05. The significant ARG co-localization on

552

a single plasmid was tested using Fisher’s exact test with fisher.test function in R. The

553

Journal Pre-proof

test was performed for all plasmid-bearing ARGs. The upset plot for the co-localization

554

patterns of ARGs were generated in R v.4.2.0. Kruskal-Wallis test was conducted in

555

comparing the frequency of insertion sequence (IS) elements across different intercellular

556

MGEs such as plasmids, prophages, ICEs, and integrative mobilizable elements (IMEs)

557

using the function kruskal.test in R v.4.2.0. Likewise, Wilcoxon rank test was also

558

performed to determine the significant difference in terms of IS element carriage between

559

plasmid-bearing ARGs and plasmid without ARGs. Significance levels are indicated as:

560

****

<0.0001, ***

<0.001, **

<0.01, and *

<0.05.

Further, the relationship between p

dif

561

modules and ARG carriage in plasmid-bearing ARGs and plasmids without ARGs were

562

investigated. Wilcoxon test was also performed with statistical significance set at

<0.05.

563

Sankey plot was built using the networkD3 package in R to show the association of ARGs,

564

intracellular MGEs, and intercellular MGEs.

565

566

SUPPLEMENTARY INFORMATION

567

Document S1. Figure S1

– S9, and Tables S1 – S5.

568

Supplementary Table S1. Species identification, isolation source, and antimicrobial

569

resistance genes composition of the 38

Acinetobacter

species.

570

Supplementary Table S4. Antimicrobial resistance genes (ARGs) in plasmids. ARG

571

duplication in plasmids were colored blue.

572

573

574

Journal Pre-proof

REFERENCES

575

1. Arnold, B.J., Huang, I.T., Hanage, W.P. (2022). Horizontal gene transfer and

576

adaptive evolution in bacteria.

Nat Rev Microbiol

. 2022 Apr;20(4):206-218. doi:

577

10.1038/s41579-021-00650-4. Epub 2021 Nov 12. PMID: 34773098.

578

2. Brito, I.L. (2021). Examining horizontal gene transfer in microbial communities.

579

Nat Rev Microbiol

. 2021 Jul;19(7):442-453. doi: 10.1038/s41579-021-00534-7.

580

Epub 2021 Apr 12. PMID: 33846600.

581

3. Haudiquet, M., de Sousa, J.M., Touchon, M., Rocha, E.P.C. (2022). Selfish,

582

promiscuous and sometimes useful: how mobile genetic elements drive

583

horizontal gene transfer in microbial populations.

Philos Trans R Soc Lond B

584

Biol Sci.

2022 Oct 10;377(1861):20210234. doi: 10.1098/rstb.2021.0234. Epub

585

2022 Aug 22. PMID: 35989606; PMCID: PMC9393566.

586

4. Partridge, S.R., Kwong, S.M., Firth, N., Jensen, S.O. (2018). Mobile Genetic

587

Elements Associated with Antimicrobial Resistance.

Clin Microbiol Rev

. 2018

588

Aug 1;31(4):e00088-17. doi: 10.1128/CMR.00088-17. PMID: 30068738;

589

PMCID: PMC6148190.

590

5. Orlek, A., Anjum, M.F., Mather, A.E., Stoesser, N., Walker, A.S. (2023)

Factors

591

associated with plasmid antibiotic resistance gene carriage revealed using

592

large-scale multivariable analysis.

Sci Rep

2023 Feb 13;13(1):2500. doi:

593

10.1038/s41598-023-29530-y. PMID: 36781908; PMCID: PMC9925765.

594

6. Rodríguez-Beltrán, J., Dela Fuente, J., León-Sampedro, R., MacLean, R.C.,

595

San Millán, Á. (2021). Beyond horizontal gene transfer: the role of plasmids in

596

Journal Pre-proof

bacterial evolution.

Nat Rev Microbiol

. 2021 Jun;19(6):347-359. doi:

597

10.1038/s41579-020-00497-1. Epub 2021 Jan 19. PMID: 33469168.

598

7. Wang, X., Zhang, H., Yu, S., Li, D., Gillings, M.R., Ren, H., Mao, D., Guo, J.,

599

Luo, Y. (2024) Inter-plasmid transfer of antibiotic resistance genes accelerates

600

antibiotic resistance in bacterial pathogens.

ISME J.

2024 Jan 8;18(1):wrad032.

601

doi: 10.1093/ismejo/wrad032. PMID: 38366209; PMCID: PMC10881300.

602

8. McCarthy, A.J., Witney, A.A., Gould, K.A., Moodley, A., Guardabassi, L., Voss,

603

A., Denis, O., Broens, E.M., Hinds, J., Lindsay, J.A. (2011). The distribution of

604

mobile genetic elements (MGEs) in MRSA CC398 is associated with both host

605

and country.

Genome Biol Evol

. 2011;3:1164-74. doi: 10.1093/gbe/evr092.

606

Epub 2011 Sep 13. PMID: 21920902; PMCID: PMC3205603.

607

9. Yuan, Q.B., Zhai, Y.F., Mao, B.Y., Schwarz, C., Hu, N. (2019). Fates of antibiotic

608

resistance genes in a distributed swine wastewater treatment plant.

Water

609

Environ Res

. 2019 Dec;91(12):1565-1575. doi: 10.1002/wer.1125. Epub 2019

610

Jul 2. PMID: 31004530.

611

10. Dimitriu, T., Szczelkun, M.D., Westra, E.R. (2020). Evolutionary Ecology and

612

Interplay of Prokaryotic Innate and Adaptive Immune Systems.

Curr Biol

. 2020

613

Oct 5;30(19):R1189-R1202. doi: 10.1016/j.cub.2020.08.028. PMID: 33022264;

614

PMCID: PMC7116224.

615

11. van Houte, S., Buckling, A., Westra, E.R. (2016). Evolutionary Ecology of

616

Prokaryotic Immune Mechanisms.

Microbiol Mol Biol Rev

. 2016 Jul

617

13;80(3):745-63. doi: 10.1128/MMBR.00011-16. PMID: 27412881; PMCID:

618

PMC4981670.

619

Journal Pre-proof

12. Siedentop, B., Rüegg, D., Bonhoeffer, S., Chabas, H. (2024). My host's enemy

620

is my enemy: plasmids carrying CRISPR-Cas as a defence against phages.

621

Proc Biol Sci

. 2024 Jan 31;291(2015):20232449. doi: 10.1098/rspb.2023.2449.

622

Epub 2024 Jan 24. PMID: 38262608; PMCID: PMC10805597.

623

13. Wheatley, R.M., MacLean, R.C. (2020). CRISPR-Cas systems restrict

624

horizontal gene transfer in Pseudomonas aeruginosa.

ISME J

. 2021

625

May;15(5):1420-1433. doi: 10.1038/s41396-020-00860-3. Epub 2020 Dec 21.

626

PMID: 33349652; PMCID: PMC8105352.

627

14. Dimitriu, T., Szczelkun, M.D., Westra, E.R. (2024). Various plasmid strategies

628

limit the effect of bacterial restriction-modification systems against conjugation.

629

Nucleic

Acids

Res

2024

Nov

27;52(21):12976-12986.

doi:

630

10.1093/nar/gkae896. PMID: 39413206; PMCID: PMC11602122.

631

15.

Berglund, F., Ebmeyer, S., Kristiansson, E., Larsson, D.G.J. (2023). Evidence

632

for wastewaters as environments where mobile antibiotic resistance genes

633

emerge.

Commun Biol

2023 Mar 25;6(1):321. doi: 10.1038/s42003-023-04676-

634

7. PMID: 36966231; PMCID: PMC10039890.

635

16. Khedkar, S., Smyshlyaev, G., Letunic, I., Maistrenko, O.M., Coelho, L.P.,

636

Orakov, A., Forslund, S.K., Hildebrand, F., Luetge, M., Schmidt, T.S.B., et al.

637

(2022). Landscape of mobile genetic elements and their antibiotic resistance

638

cargo in prokaryotic genomes.

Nucleic Acids Res

. 2022 Apr 8;50(6):3155-3168.

639

doi: 10.1093/nar/gkac163. PMID: 35323968; PMCID: PMC8989519.

640

17. Takeuchi, N., Hamada-Zhu, S., Suzuki, H. (2023). Prophages and plasmids can

641

display opposite trends in the types of accessory genes they carry.

Proc Biol

642

Journal Pre-proof

Sci

. 2023 Jun 28;290(2001):20231088. doi: 10.1098/rspb.2023.1088. Epub

643

2023 Jun 21. PMID: 37339743; PMCID: PMC10281811.

644

18. Enault, F., Briet, A., Bouteille, L., Roux, S., Sullivan, M.B., Petit, M.A. (2016).

645

Phages rarely encode antibiotic resistance genes: a cautionary tale for virome

646

analyses.

ISME J

. 2017 Jan;11(1):237-247. doi: 10.1038/ismej.2016.90. Epub

647

2016 Jun 21. PMID: 27326545; PMCID: PMC5315482.

648

19. Smillie, C., Garcillán-Barcia, M.P., Francia, M.V., Rocha, E.P., de la Cruz, F.

649

(2010). Mobility of plasmids.

Microbiol Mol Biol Rev

. 2010 Sep;74(3):434-52.

650

doi: 10.1128/MMBR.00020-10. PMID: 20805406; PMCID: PMC2937521.

651

20. Pal, C., Bengtsson-Palme, J., Kristiansson, E., Larsson, D.G. (2015). Co-

652

occurrence of resistance genes to antibiotics, biocides and metals reveals novel

653

insights into their co-selection potential.

BMC Genomics

. 2015 Nov 17;16:964.

654

doi: 10.1186/s12864-015-2153-5. PMID: 26576951; PMCID: PMC4650350.

655

21. Lang, A.S., Buchan, A., Burrus, V. (2025). Interactions and evolutionary

656

relationships among bacterial mobile genetic elements.

Nat Rev Microbiol

. 2025

657

Mar 11. doi: 10.1038/s41579-025-01157-y. Epub ahead of print. PMID:

658

40069292.

659

22. Ares-Arroyo, M., Coluzzi, C., Moura de Sousa, J.A., Rocha, E.P.C. (2024).

660

Hijackers, hitchhikers, or co-drivers? The mysteries of mobilizable genetic

661

elements.

PLoS

Biol.

2024

Aug

29;22(8):e3002796.

doi:

662

10.1371/journal.pbio.3002796. PMID: 39208359; PMCID: PMC11389934.

663

23. Horne, T., Orr, V.T., Hall, J.P. (2023). How do interactions between mobile

664

genetic elements affect horizontal gene transfer?

Curr Opin Microbiol

. 2023

665

Journal Pre-proof

Jun;73:102282. doi: 10.1016/j.mib.2023.102282. Epub 2023 Feb 28. PMID:

666

36863168.

667

24. Siguier, P., Gourbeyre, E., Chandler, M. (2014). Bacterial insertion sequences:

668

their genomic impact and diversity.

FEMS Microbiol Rev

. 2014 Sep;38(5):865-

669

91. doi: 10.1111/1574-6976.12067. Epub 2014 Feb 26. PMID: 24499397;

670

PMCID: PMC7190074.

671

25. Fournier, P.E., Vallenet, D., Barbe, V., Audic, S., Ogata, H., Poirel, L., Richet,

672

H., Robert, C., Mangenot, S., Abergel, C., et al. (2006). Comparative genomics

673

of multidrug resistance in

Acinetobacter baumannii.

PLoS Genet

. 2006

674

Jan;2(1):e7. doi: 10.1371/journal.pgen.0020007. Epub 2006 Jan 13. PMID:

675

16415984; PMCID: PMC1326220.

676

26. Post, V., White, P.A., Hall, R.M. (2010). Evolution of AbaR-type genomic

677

resistance islands in multiply antibiotic-resistant

Acinetobacter baumannii. J

678

Antimicrob Chemother.

2010 Jun;65(6):1162-70. doi: 10.1093/jac/dkq095. Epub

679

2010 Apr 7. PMID: 20375036.

680

27. Hamidian, M., Hall, R.M. (2011). AbaR4 replaces AbaR3 in a carbapenem-

681

resistant

Acinetobacter baumannii

isolate belonging to global clone 1 from an

682

Australian hospital.

J Antimicrob Chemother

. 2011 Nov;66(11):2484-91. doi:

683

10.1093/jac/dkr356. Epub 2011 Aug 26. PMID: 21873287.

684

28. Nigro, S.J., Hall, R.M. (2012). Antibiotic resistance islands in A320 (RUH134),

685

the reference strain for

Acinetobacter baumannii

global clone 2.

J Antimicrob

686

Chemother

. 2012 Feb;67(2):335-8. doi: 10.1093/jac/dkr447. Epub 2011 Oct 20.

687

PMID: 22020138.

688

Journal Pre-proof

29. Nigro, S.J., Farrugia, D.N., Paulsen, I.T., Hall, R.M. (2013). A novel family of

689

genomic resistance islands, AbGRI2, contributing to aminoglycoside resistance

690

Acinetobacter baumannii

isolates belonging to global clone 2.

J Antimicrob

691

Chemother

. 2013 Mar;68(3):554-7. doi: 10.1093/jac/dks459. Epub 2012 Nov 20.

692

PMID: 23169892.

693

30. Blackwell, G.A., Holt, K.E., Bentley, S.D., Hsu, L.Y., Hall, R.M. (2017). Variants

694

of AbGRI3 carrying the armA gene in extensively antibiotic-resistant

695

Acinetobacter baumannii

from Singapore.

J Antimicrob Chemother

. 2017 Apr

696

1;72(4):1031-1039. doi: 10.1093/jac/dkw542. PMID: 28073968; PMCID:

697

PMC5400096.

698

31. Hamidian, M., Hall, R.M. (2017). Origin of the AbGRI1 antibiotic resistance

699

island found in the comM gene of

Acinetobacter baumannii

GC2 isolates.

700

Antimicrob Chemother.

2017 Oct 1;72(10):2944-2947. doi: 10.1093/jac/dkx206.

701

PMID: 28666372.

702

32. Chan, A.P., Choi, Y., Clarke, T.H., Brinkac, L.M., White, R.C., Jacobs, M.R.,

703

Bonomo, R.A., Adams, M.D., Fouts, D.E. (2020). AbGRI4, a novel antibiotic

704

resistance island in multiply antibiotic-resistant

Acinetobacter baumannii

clinical

705

isolates.

J Antimicrob Chemother

. 2020 Oct 1;75(10):2760-2768. doi:

706

10.1093/jac/dkaa266. PMID: 32681170; PMCID: PMC7556812.

707

33. Hua, X., Moran, R.A., Xu, Q., He, J., Fang, Y., Zhang, L., van Schaik, W., Yu,

708

Y. (2021). Acquisition of a genomic resistance island (AbGRI5) from global clone

709

2 through homologous recombination in a clinical

Acinetobacter baumannii

710

Journal Pre-proof

isolate.

Antimicrob

Chemother.

2021

Jan

1;76(1):65-69.

doi:

711

10.1093/jac/dkaa389. PMID: 33057672.

712

34. Kim, D.H., Ko, K.S. (2015). AbaR-type genomic islands in non-

baumannii

713

Acinetobacter

species isolates from South Korea.

Antimicrob Agents

714

Chemother

. 2015 Sep;59(9):5824-6. doi: 10.1128/AAC.01175-15. Epub 2015

715

Jun 22. PMID: 26100696; PMCID: PMC4538507.

716

35. Yuan, Q.B., Zhai, Y.F., Mao, B.Y., Schwarz, C., Hu, N. (2019). Fates of antibiotic

717

resistance genes in a distributed swine wastewater treatment plant.

Water

718

Environ Res.

2019 Dec;91(12):1565-1575. doi: 10.1002/wer.1125. Epub 2019

719

Jul 2. PMID: 31004530.

720

36. Qian, X., Sun, W., Gu, J., Wang, X.J., Zhang, Y.J., Duan, M.L., Li, H.C., Zhang,

721

R.R. (2016). Reducing antibiotic resistance genes, integrons, and pathogens in

722

dairy manure by continuous thermophilic composting.

Bioresour Technol

. 2016

723

Nov;220:425-432. doi: 10.1016/j.biortech.2016.08.101. Epub 2016 Aug 31.

724

PMID: 27598571.

725

37. Zalewska, M.

, Błażejewska, A., Czapko, A., Popowska, M. (2023) Pig manure

726

treatment strategies for mitigating the spread of antibiotic resistance.

Sci Rep

727

2023 Jul 25;13(1):11999. doi: 10.1038/s41598-023-39204-4. PMID: 37491438;

728

PMCID: PMC10368742.

729

38. Yang, F., Han, B., Gu, Y., Zhang, K. (2020). Swine liquid manure: a hotspot of

730

mobile genetic elements and antibiotic resistance genes.

Sci Rep

. 2020 Sep

731

14;10(1):15037. doi: 10.1038/s41598-020-72149-6. PMID: 32929149; PMCID:

732

PMC7490410.

733

Journal Pre-proof

39. Witte, W. (2000). Selective pressure by antibiotic use in livestock.

Int J

734

Antimicrob Agents.

2000 Nov;16 Suppl 1:S19-24. doi: 10.1016/s0924-

735

8579(00)00301-0. PMID: 11137404.

736

40. Ballesté, E., Blanch, A.R., Muniesa, M., García-Aljaro, C., Rodríguez-Rubio, L.,

737

Martín-Díaz, J., Pascual-Benito, M., Jofre, J. (2022). Bacteriophages in sewage:

738

abundance, roles, and applications.

FEMS Microbes

. 2022 Mar 17;3:xtac009.

739

doi: 10.1093/femsmc/xtac009. PMID: 37332509; PMCID: PMC10117732.

740

41.

López-Leal, G., Camelo-Valera, L.C., Hurtado-Ramírez, J.M., Verleyen, J.,

741

Castillo-Ramírez, S., Reyes-Muñoz, A. (2022). Mining of Thousands of

742

Prokaryotic Genomes Reveals High Abundance of Prophages with a Strictly

743

Narrow Host Range.

mSystems

. 2022 Aug 30;7(4):e0032622. doi:

744

10.1128/msystems.00326-22. Epub 2022 Jul 26. PMID: 35880895; PMCID:

745

PMC9426530.

746

42. Kogay, R., Wolf, Y.I., Koonin, E.V. (2024). Defence systems and horizontal gene

747

transfer in bacteria.

Environ Microbiol

. 2024 Apr;26(4):e16630. doi:

748

10.1111/1462-2920.16630. PMID: 38643972; PMCID: PMC11034907.

749

43. Costa, A.R., van den Berg, D.F., Esser, J.Q., Muralidharan, A., van den

750

Bossche, H., Bonilla, B.E., van der Steen, B.A., Haagsma, A.C., Fluit, A.C.,

751

Nobrega, F.L., et al. (2024). Accumulation of defense systems in phage-

752

resistant strains of

Pseudomonas aeruginosa

Sci Adv

. 2024 Feb

753

23;10(8):eadj0341. doi: 10.1126/sciadv.adj0341. Epub 2024 Feb 23. PMID:

754

38394193; PMCID: PMC10889362.

755

Journal Pre-proof

44. Huang, D., Liao, J., Balcazar, J.L., Ye, M., Wu, R., Wang, D., Alvarez, P.J.J.,

756

Yu, P. (2025). Adaptive modification of antiviral defense systems in microbial

757

community under Cr-induced stress.

Microbiome

. 2025 Jan 31;13(1):34. doi:

758

10.1186/s40168-025-02030-z. PMID: 39891205; PMCID: PMC11786475.

759

45. Samuel, B., Mittelman, K., Croitoru, S.Y., Ben Haim, M., Burstein, D. (2024).

760

Diverse anti-defence systems are encoded in the leading region of plasmids.

761

Nature.

2024 Nov;635(8037):186-192. doi: 10.1038/s41586-024-07994-w.

762

Epub 2024 Oct 9. PMID: 39385022; PMCID: PMC11541004.

763

46. Wang, X., Zhang, H., Long, X., Xu, X., Ren, H., Mao, D., Alvarez, P.J.J., Luo, Y.

764

(2023). Global Increase of Antibiotic Resistance Genes in Conjugative

765

Plasmids.

Microbiol

Spectr

2023

Mar

22;11(2):e0447822.

doi:

766

10.1128/spectrum.04478-22. Epub ahead of print. PMID: 36946731; PMCID:

767

PMC10100709.

768

47. Blackwell, G.A., Hall, R.M. (2017). The

tet39

Determinant and the

msrE-

769

mphE

Genes in

Acinetobacter

Plasmids Are Each Part of Discrete Modules

770

Flanked by Inversely Oriented p

dif

(XerC-XerD) Sites.

Antimicrob Agents

771

Chemother.

2017 Jul 25;61(8):e00780-17. doi: 10.1128/AAC.00780-17. PMID:

772

28533235; PMCID: PMC5527579.

773

48. Moran, R.A., Liu, H., Doughty, E.L., Hua, X., Cummins, E.A., Liveikis, T.,

774

McNally, A., Zhou, Z., van Schaik, W., Yu, Y. (2022). GR13-type plasmids

775

Acinetobacter

potentiate the accumulation and horizontal transfer of diverse

776

accessory genes.

Microb Genom

. 2022 Jun;8(6):mgen000840. doi:

777

10.1099/mgen.0.000840. PMID: 35731562; PMCID: PMC9455709.

778

Journal Pre-proof

49. Tobin, L.A., Jarocki, V.M., Kenyon, J., Drigo, B., Donner, E., Djordjevic, S.P.,

779

Hamidian,

(2024).

Genomic

analysis

diverse

780

environmental

Acinetobacter

isolates identifies plasmids, antibiotic resistance

781

genes, and capsular polysaccharides shared with clinical strains.

Appl Environ

782

Microbiol

. 2024 Feb 21;90(2):e0165423. doi: 10.1128/aem.01654-23. Epub

783

2024 Jan 11. PMID: 38206028; PMCID: PMC10885009.

784

50. Chang, T.H., Pourtois, J.D., Haddock, N.L., Furukawa, D., Kelly, K.E.,

785

Amanatullah, D.F., Burgener, E., Milla, C., Banaei, N., Bollyky, P.L. (2025).

786

Prophages are infrequently associated with antibiotic resistance in

787

Pseudomonas

aeruginosa

clinical

isolates.

mSphere

0:e00904-

788

24.https://doi.org/10.1128/msphere.00904-24.

789

51. Morales, G., Abelson, B., Reasoner, S., Miller, J., Earl, A.M., Hadjifrangiskou,

790

M., Schmitz, J. (2023). The Role of Mobile Genetic Elements in Virulence Factor

791

Carriage from Symptomatic and Asymptomatic Cases of

Escherichia coli

792

Bacteriuria.

Microbiol

Spectr

2023

Jun

15;11(3):e0471022.

doi:

793

10.1128/spectrum.04710-22. Epub 2023 May 17. PMID: 37195213; PMCID:

794

PMC10269530.

795

52.

Nepal, R., Houtak, G., Shaghayegh, G., Bouras, G., Shearwin, K., Psaltis, A.J.,

796

Wormald, P.J., Vreugde, S. (2021). Prophages encoding human immune

797

evasion cluster genes are enriched in

Staphylococcus aureus

isolated from

798

chronic rhinosinusitis patients with nasal polyps.

Microb Genom

. 2021

799

Dec;7(12):000726. doi: 10.1099/mgen.0.000726. PMID: 34907894; PMCID:

800

PMC8767322.

801

Journal Pre-proof

53. Loh, B., Chen, J., Manohar, P., Yu, Y., Hua, X., Leptihn, S. (2020). A Biological

802

Inventory of Prophages in

A. baumannii

Genomes Reveal Distinct Distributions

803

in Classes, Length, and Genomic Positions.

Front Microbiol

. 2020 Dec

804

3;11:579802. doi: 10.3389/fmicb.2020.579802. PMID: 33343523; PMCID:

805

PMC7744312.

806

54. Rousset, F., Depardieu, F., Miele, S., Dowding, J., Laval, A.L., Lieberman, E.,

807

Garry, D., Rocha, E.P.C., Bernheim, A., Bikard, D. (2022). Phages and their

808

satellites encode hotspots of antiviral systems.

Cell Host Microbe

. 2022 May

809

11;30(5):740-753.e5. doi: 10.1016/j.chom.2022.02.018. Epub 2022 Mar 21.

810

PMID: 35316646; PMCID: PMC9122126.

811

55. Hyatt, D., Chen, G.L., Locascio, P.F., Land, M.L., Larimer, F.W., Hauser, L.J.

812

(2010). Prodigal: prokaryotic gene recognition and translation initiation site

813

identification.

BMC Bioinformatics

. 2010 Mar 8;11:119. doi: 10.1186/1471-2105-

814

11-119. PMID: 20211023; PMCID: PMC2848648.

815

56. Redondo-Salvo, S., Fernández-López, R., Ruiz, R., Vielva, L., de Toro, M.,

816

Rocha, E.P.C., Garcillán-Barcia, M.P., de la Cruz, F. (2020). Pathways for

817

horizontal gene transfer in bacteria revealed by a global map of their plasmids.

818

Nat Commun

. 2020 Jul 17;11(1):3602. doi: 10.1038/s41467-020-17278-2.

819

PMID: 32681114; PMCID: PMC7367871.

820

57. Che, Y., Yang, Y., Xu, X.

, Břinda, K., Polz, M.F., Hanage, W.P., Zhang, T.

821

(2021). Conjugative plasmids interact with insertion sequences to shape the

822

horizontal transfer of antimicrobial resistance genes.

Proc Natl Acad Sci U S A

823

Journal Pre-proof

2021 Feb 9;118(6):e2008731118. doi: 10.1073/pnas.2008731118. PMID:

824

33526659; PMCID: PMC8017928.

825

58.

Pfeifer, E., Moura de Sousa, J.A., Touchon, M., Rocha, E.P.C. (2021). Bacteria

826

have numerous distinctive groups of phage-plasmids with conserved phage and

827

variable plasmid gene repertoires.

Nucleic Acids Res

. 2021 Mar 18;49(5):2655-

828

2673. doi: 10.1093/nar/gkab064. PMID: 33590101; PMCID: PMC7969092.

829

59. Pfeifer, E., Rocha, E.P.C. (2024). Phage-plasmids promote recombination and

830

emergence of phages and plasmids.

Nat Commun

. 2024 Feb 20;15(1):1545.

831

doi: 10.1038/s41467-024-45757-3. PMID: 38378896; PMCID: PMC10879196.

832

60. Liu, X., Li, R., Chan, E.W., Chen, S. (2023). Complete Genetic Analysis of

833

Plasmids Carrying Multiple Resistance, Virulence, and Phage-Like Genes in

834

Foodborne

Escherichia

coli

Isolate.

Microbiol

Spectr

2023

Mar

835

21;11(2):e0282022. doi: 10.1128/spectrum.02820-22. Epub ahead of print.

836

PMID: 36943060; PMCID: PMC10101111.

837

61. Costa, A.R., Monteiro, R., Azeredo, J. (2018). Genomic analysis of

838

Acinetobacter baumannii prophages reveals remarkable diversity and suggests

839

profound impact on bacterial virulence and fitness.

Sci Rep

. 2018 Oct

840

18;8(1):15346. doi: 10.1038/s41598-018-33800-5. PMID: 30337588; PMCID:

841

PMC6193963.

842

62. Hamed, S.M., Hussein, A.F.A., Al-Agamy, M.H., Radwan, H.H., Zafer, M.M.

843

(2022). Genetic Configuration of Genomic Resistance Islands in

Acinetobacter

844

baumannii

Clinical Isolates From Egypt.

Front Microbiol

. 2022 Jul

845

Journal Pre-proof

22;13:878912. doi: 10.3389/fmicb.2022.878912. PMID: 35935207; PMCID:

846

PMC9353178.

847

63. Liepa, R., Mann, R., Osman, M., Hamze, M., Gunawan, C., Hamidian, M.

848

(2022). Cl415, a carbapenem-resistant

Acinetobacter baumannii

isolate

849

containing four AbaR4 and a new variant of AbGRI2, represents a novel global

850

clone 2 strain.

J Antimicrob Chemother

. 2022 Feb 2;77(2):345-350. doi:

851

10.1093/jac/dkab399. PMID: 34741594; PMCID: PMC8809195.

852

64. Bi, D., Zheng, J., Xie, R., Zhu, Y., Wei, R., Ou, H.Y., Wei, Q., Qin, H. (2020).

853

Comparative Analysis of AbaR-Type Genomic Islands Reveals Distinct Patterns

854

of Genetic Features in Elements with Different Backbones.

mSphere

. 2020 May

855

27;5(3):e00349-20. doi: 10.1128/mSphere.00349-20. PMID: 32461273;

856

PMCID: PMC7253598.

857

65. Seputiene, V., Povilonis, J., Suziedeliene, E. (2012). Novel variants of AbaR

858

resistance islands with a common backbone in

Acinetobacter baumannii

859

isolates of European clone II.

Antimicrob Agents Chemother

. 2012

860

Apr;56(4):1969-73. doi: 10.1128/AAC.05678-11. Epub 2012 Jan 30. PMID:

861

22290980; PMCID: PMC3318354.

862

66. Bongulto, K.A., Kagia, N., Tauchi, H., Suzuki, S., Watanabe, K. (2025).

863

Differences in co-selection and localization of antimicrobial resistance and

864

virulence genes among

Acinetobacter

isolates from patients, pig waste, and the

865

environment.

Sci

Total

Environ

2025

Oct

1;1002:180627.

doi:

866

10.1016/j.scitotenv.2025.180627. Epub ahead of print. Erratum in: Sci Total

867

Journal Pre-proof

Environ. 2025 Nov 10;1003:180736. doi: 10.1016/j.scitotenv.2025.180736.

868

PMID: 41039664.

869

67. Robertson, J., Nash, J.H.E. (2018). MOB-suite: software tools for clustering,

870

reconstruction and typing of plasmids from draft assemblies.

Microb Genom

871

2018 Aug;4(8):e000206. doi: 10.1099/mgen.0.000206. Epub 2018 Jul 27.

872

PMID: 30052170; PMCID: PMC6159552.

873

68. Altschul, S.F., Gish, W., Miller, W., Myers, E.W., Lipman, D.J. (1990). Basic local

874

alignment search tool.

J Mol Biol

. 1990 Oct 5;215(3):403-10. doi:

875

10.1016/S0022-2836(05)80360-2. PMID: 2231712.

876

69. Lam, M.M.C., Koong, J., Holt, K.E., Hall, R.M., Hamidian, M. (2023). Detection

877

and Typing of Plasmids in

Acinetobacter baumannii

Using

rep

Genes Encoding

878

Replication Initiation Proteins.

Microbiol Spectr

. 2023 Feb 14;11(1):e0247822.

879

doi: 10.1128/spectrum.02478-22. Epub 2022 Dec 6. PMID: 36472426; PMCID:

880

PMC9927589.

881

70. Wishart, D.S., Han, S., Saha, S., Oler, E., Peters, H., Grant, J.R., Stothard, P.,

882

Gautam, V. (2023). PHASTEST: faster than PHASTER, better than PHAST.

883

Nucleic Acids Res

. 2023 Jul 5;51(W1):W443-W450. doi: 10.1093/nar/gkad382.

884

PMID: 37194694; PMCID: PMC10320120.

885

71. Johansson, M.H.K., Bortolaia, V., Tansirichaiya, S., Aarestrup, F.M., Roberts,

886

A.P., Petersen, T.N. (2021). Detection of mobile genetic elements associated

887

with antibiotic resistance in Salmonella enterica using a newly developed web

888

tool: MobileElementFinder.

J Antimicrob Chemother

. 2021 Jan 1;76(1):101-109.

889

doi: 10.1093/jac/dkaa390. PMID: 33009809; PMCID: PMC7729385.

890

Journal Pre-proof

72. Hua, X., Liang, Q., Deng, M., He, J., Wang, M., Hong, W., Wu, J., Lu, B., Leptihn,

891

S., Yu, Y., Chen, H. (2021). BacAnt: A Combination Annotation Server for

892

Bacterial DNA Sequences to Identify Antibiotic Resistance Genes, Integrons,

893

and Transposable Elements.

Front Microbiol

. 2021 Jul 23;12:649969. doi:

894

10.3389/fmicb.2021.649969. PMID: 34367079; PMCID: PMC8343408.

895

73. Néron, B., Littner, E., Haudiquet, M., Perrin, A., Cury, J., Rocha, E.P.C. (2022).

896

IntegronFinder 2.0: Identification and Analysis of Integrons across Bacteria, with

897

a Focus on Antibiotic Resistance in

Klebsiella

Microorganisms

. 2022 Mar

898

24;10(4):700. doi: 10.3390/microorganisms10040700. PMID: 35456751;

899

PMCID: PMC9024848.

900

74. Liu, M., Li, X., Xie, Y., Bi, D., Sun, J., Li, J., Tai, C., Deng, Z., Ou, H.Y. (2019).

901

ICEberg 2.0: an updated database of bacterial integrative and conjugative

902

elements.

Nucleic Acids Res

. 2019 Jan 8;47(D1):D660-D665. doi:

903

10.1093/nar/gky1123. PMID: 30407568; PMCID: PMC6323972.

904

75. Bertelli,

C.,

Laird,

M.R.,

Williams,

K.P.,

905

Simon Fraser University Research Computing Group; Lau, B.Y., Hoad, G.,

906

Winsor, G.L., Brinkman, F.S.L. (2017). IslandViewer 4: expanded prediction of

907

genomic islands for larger-scale datasets.

Nucleic Acids Res

. 2017 Jul

908

3;45(W1):W30-W35. doi: 10.1093/nar/gkx343. PMID: 28472413; PMCID:

909

PMC5570257.

910

76. Shao, M., Ying, N., Liang, Q., Ma, N., Leptihn, S., Yu, Y., Chen, H., Liu, C., Hua,

911

X. (2023). P

dif

-mediated antibiotic resistance genes transfer in bacteria

912

Journal Pre-proof

identified by pdifFinder.

Brief Bioinform

. 2023 Jan 19;24(1):bbac521. doi:

913

10.1093/bib/bbac521. PMID: 36470841.

914

77. Seeman, T. (2020). Abricate. https://github.com/tseemann/abricate.

915

78. Alcock, B.P., Huynh, W., Chalil, R., Smith, K.W., Raphenya, A.R., Wlodarski,

916

M.A., Edalatmand, A., Petkau, A., Syed, S.A., Tsang, K.K., et al. (2023). CARD

917

2023: expanded curation, support for machine learning, and resistome

918

prediction at the Comprehensive Antibiotic Resistance Database.

Nucleic Acids

919

Res

. 2023 Jan 6;51(D1):D690-D699. doi: 10.1093/nar/gkac920. PMID:

920

36263822; PMCID: PMC9825576.

921

79. Florensa, A.F., Kaas, R.S., Clausen, P.T.L.C., Aytan-Aktug, D., Aarestrup, F.M.

922

(2022). ResFinder - an open online resource for identification of antimicrobial

923

resistance genes in next-generation sequencing data and prediction of

924

phenotypes from genotypes.

Microb Genom

. 2022 Jan;8(1):000748. doi:

925

10.1099/mgen.0.000748. PMID: 35072601; PMCID: PMC8914360.

926

80. Tesson, F., Hervé, A., Mordret, E., Touchon,, M., d'Humières, C., Cury, J.,

927

Bernheim, A. (2022). Systematic and quantitative view of the antiviral arsenal of

928

prokaryotes.

Nat Commun

. 2022 May 10;13(1):2561. doi: 10.1038/s41467-022-

929

30269-9. PMID: 35538097; PMCID: PMC9090908.

930

81. Schwengers, O., Jelonek, L., Dieckmann, M.A., Beyvers, S., Blom, J.,

931

Goesmann, A. (2021). Bakta: rapid and standardized annotation of bacterial

932

genomes via alignment-free sequence identification.

Microb Genom

933

7(11):000685. doi: 10.1099/mgen.0.000685. PMID: 34739369; PMCID:

934

PMC8743544.

935

Journal Pre-proof

KEY RESOURCES TABLE

The table highlights the reagents, genetically modified organisms and strains, cell lines, software,
instrumentation, and source data

essential

to reproduce results presented in the manuscript. Depending

on the nature of the study, this may include standard laboratory materials (i.e., food chow for metabolism
studies, support material for catalysis studies), but the table is

not

meant to be a comprehensive list of all

materials and resources used (e.g., essential chemicals such as standard solvents, SDS, sucrose, or
standard culture media do not need to be listed in the table).

However, please note that items in the

table must also be reported in the method details section within the context of their use.

ALL references cited in the key resources table must be included in the main references list.

Citations should be formatted as “Author name et al.

” (e.g., Smith et al.

), with the citation number

matching that in the main references list.

Please report the information as follows:

•

REAGENT or RESOURCE:

Provide the full descriptive name of the item so that it can be identified

and linked with its description in the manuscript (e.g., provide version number for software, host
source for antibody, strain name). See the sample tables

at the end of this document for examples of

how to report reagents.

In the

experimental models sections

(applicable only to experimental life science

studies), please include all models used in the paper and describe each line/strain as
model organism: name used for strain/line in paper: genotype (e.g.,
Mouse: OXTR

fl/fl

: B6.129(SJL)-Oxtr

tm1.1Wsy/J

The

Biological samples section

(applicable only to experimental life science studies)

should list all samples obtained in this study or from commercial sources or biological
repositories.

You may list a maximum of 10 oligonucleotides or RNA sequences

in the table. If

there are more than 10 to report, please provide this information as a supplemental
document and reference the file (e.g., See Table S1 for XX) in the key resources table.

Deposited data

should include both newly deposited data from this manuscript and

existing datasets that were used in the manuscript.

Please include software and code mentioned in the method details or data and code

availability section under

software and algorithms

Any item that does not fit the existing subheadings should be added to the

“other”

section.

Please do not add your own subheadings.

•

SOURCE:

Report the company, manufacturer, or individual that provided the item or where the item

can be obtained (e.g., stock center or repository).

For materials distributed by Addgene, please cite the article describing the plasmid and

include “Addgene” as part of the identifier.

If an item is from another lab, please include the name of the principal investigator and a

citation if it has been previously published.

If the material is being reported for the first time in the current paper, please indicate as

“this paper.”

For software, please provide the company name if it is commercially available or cite the

paper in which it has been initially described.

•

IDENTIFIER:

Include catalog numbers

(entered in the column as “Cat#” followed by the number,

e.g., Cat#3879S). Where available, please include unique entities such as RRIDs, Model Organism
Database numbers, and accession numbers preceded by database abbreviations such as PDB or

Journal Pre-proof

CCDC). Please ensure the accuracy of the identifiers, as they are essential for generation of
hyperlinks to external sources when available. For more information about data sharing policies and
a list of recommended data repositories for abbreviations, please see the Cell Press

Author’s guide

to data sharing.

For antibodies, if applicable and available, please also include the lot number or clone

identity.

For software or data resources, please include the URL where the resource can be

downloaded.

When listing more than one identifier for the same item, use semicolons to separate them

(e.g., Cat#3879S; RRID: AB_2255011).

If an identifier is not available,

please enter “N/A” in the column.

A NOTE ABOUT RRIDs:

we highly recommend using RRIDs as the identifier (in

particular for antibodies and organisms but also for software tools and databases). For
more details on how to obtain or generate an RRID for existing or newly generated
resources, please visit the RII or search for RRIDs.

Please use the empty table that follows to organize the information under the provided subheadings and
skip sections that are not relevant to your study. To add a row, place the cursor at the end of the row
above where you would like to add the row, just outside the right border of the table. Then press the
ENTER key to add the row. Alternatively, you can right-click on your mouse and choose Insert > Insert
rows above or Insert rows below. Please delete empty rows. Each entry must be on a separate row; do
not list multiple items in a single table cell. Please see the sample tables at the end of this document for
relevant examples in the life and physical sciences of how reagents and instrumentation should be cited.

Journal Pre-proof

TABLE FOR AUTHOR TO COMPLETE

Please do not add custom subheadings. If you wish to make an entry that does not fall into one of the
subheadings below, please contact your handling editor or add it under

the “other

” subheading

. Any subheadings

not relevant to your study can be skipped. (NOTE: references should be in numbered style, e.g., Smith et al.

)

Key resources table

REAGENT or RESOURCE

SOURCE

IDENTIFIER

Antibodies

Bacterial and virus strains

Acinetobacter baumannii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter pittii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter junii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter guillouiae

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter bereziniae

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter ursingii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter calcoaceticus

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter indicus

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter amyesii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter johnsonii

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter towneri

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Acinetobacter haemolyticus

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Biological samples

Journal Pre-proof

Chemicals, peptides, and recombinant proteins

Blunt/TA Ligase Master Mix

New England BioLabs

M03367L

NEBNext® Companion Module for Oxford Nanopore
Technologies Ligation Sequencing

New England BioLabs

E7180S

NEBNext® Quick Ligation Reaction Buffer

New England BioLabs

B6058S

NEBNext® FFPE Repair Mix

New England BioLabs

M6630S

NEBNext® Ultra II End repair/dA-tailing Module

New England BioLabs

E7546S

NEBNext® Quick Ligation Module

New England BioLabs

E6056S

Oxford Nanopore Technologies Ligation Sequencing Kit

Oxford Nanopore
Technologies

SQK-LSK109

Flow Cell R9

Oxford Nanopore
Technologies

FLO-MIN106D

Flow Cell Wash Kit

Oxford Nanopore
Technologies

EXP-WSH004

Native Barcoding Expansion 1-12 (PCR free)

Oxford Nanopore
Technologies

EXP-NBD104

Ampure XP Beads

Beckman Coulter Inc.

A63880

Critical commercial assays

Illumina NovaSeq 6000 Whole Genome Sequencing

Eurofins Genomics

https://eurofinsgeno
mics.jp/jp/home/

Deposited data

Whole genome sequences

Bongulto et al.

BioProject
Accession:
PRJNA1184881

Experimental models: Cell lines

Experimental models: Organisms/strains

Journal Pre-proof

Oligonucleotides

Recombinant DNA

Software and algorithms

MOB-suite (v3.1.8)

Robertson et al.

https://github.com/ph
ac-nml/mob-suite

blastn

Acinetobacter

Plasmid Typing (APT) scheme (v3.0)

Lam et al.

https://github.com/M
ehradHamidian/Acin
etobacterPlasmidTy
ping

PHASTEST

Wishart et al.

https://phastest.ca

MobileElementFinder

Johansson et al.

https://cge.food.dtu.d
k/services/MobileEle
mentFinder/

BacAnt

Hua et al.

bacant.net/BacAnt/

Integron Finder

Néron et al.

https://github.com/ge
m-
pasteur/Integron_Fin
der

ICEberg (v2.0)

Liu et al.

http://db-
mml.sjtu.edu.cn/ICE
berg/

IslandViewer 4

Bertelli et al.

https://www.pathoge
nomics.sfu.ca/island
viewer

pdifFinder

Shao et al.

pdif.dmicrobe.cn/pdif
/home/

Abricate

Seeman, T.

https://github.com/ts
eeman/abricate

CARD (v3.2.4)

Alcock et al.

https://github.com/ar
pcard/rgi

ResFinder (v4.6.0)

Florensa et al.

https://github.com/ge
nomicepidemiology/r
esfinder

DefenseFinder

Tesson et al.

https://github.com/m
dmparis/defense-
finder

Bakta (v5.0)

Schwengers et al.

https://github.com/os
chwengers/bakta

Geneviewer (v0.1.6)

Van der Velden, N.

https://nvelden.githu
b.io/geneviewer/

R v4.2.0

R core Team, 2021

https://posit.co/downl
oad/rstudio-desktop/

Journal Pre-proof
